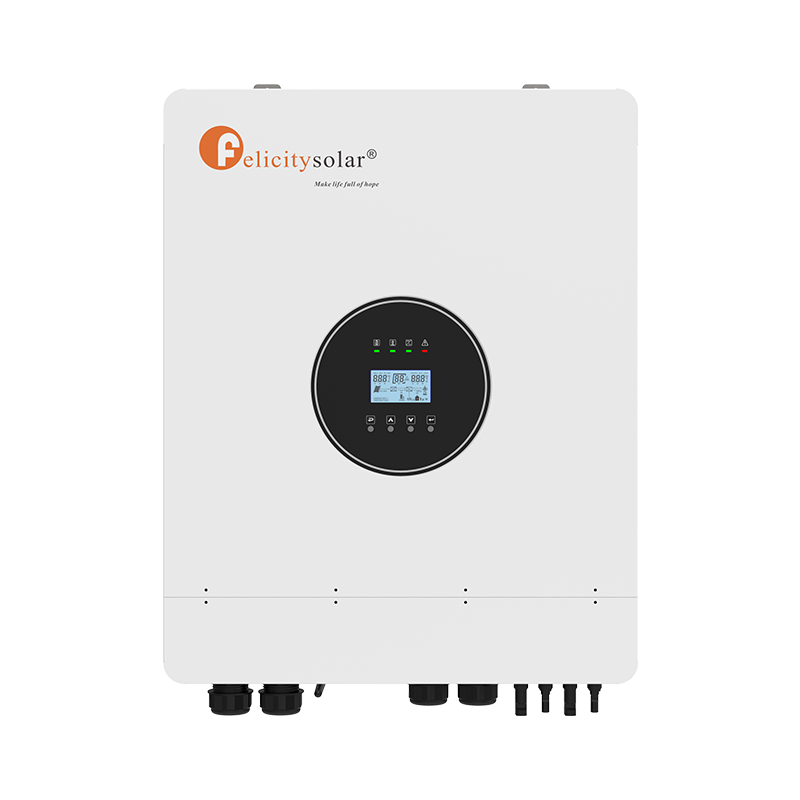

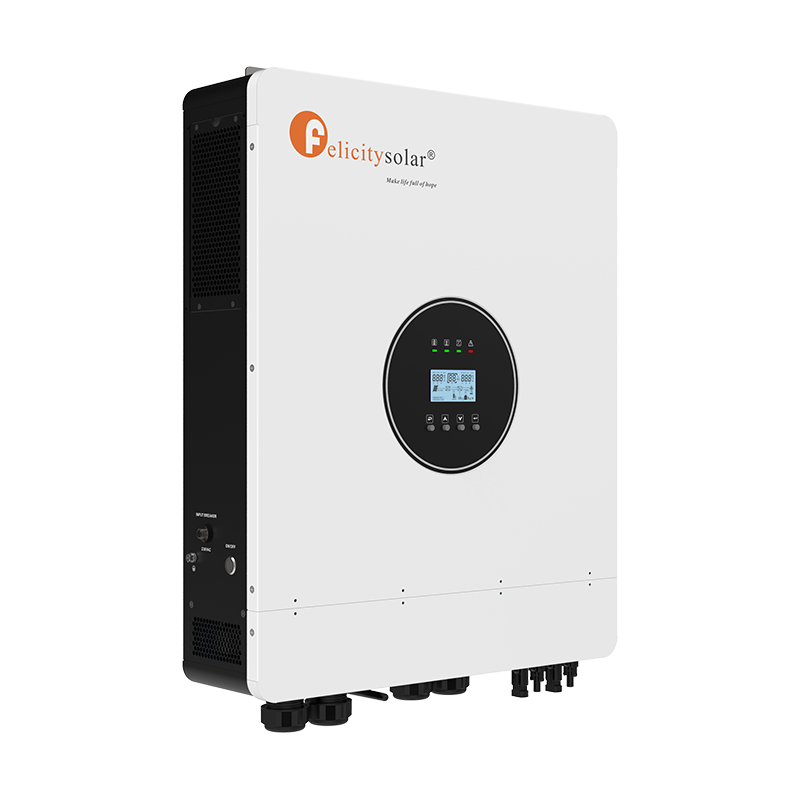

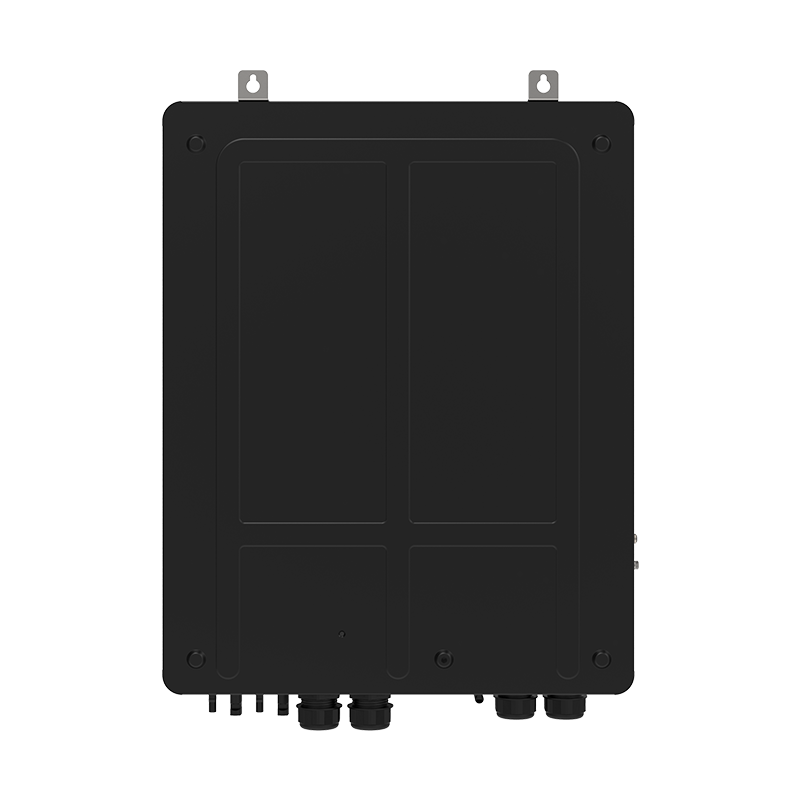

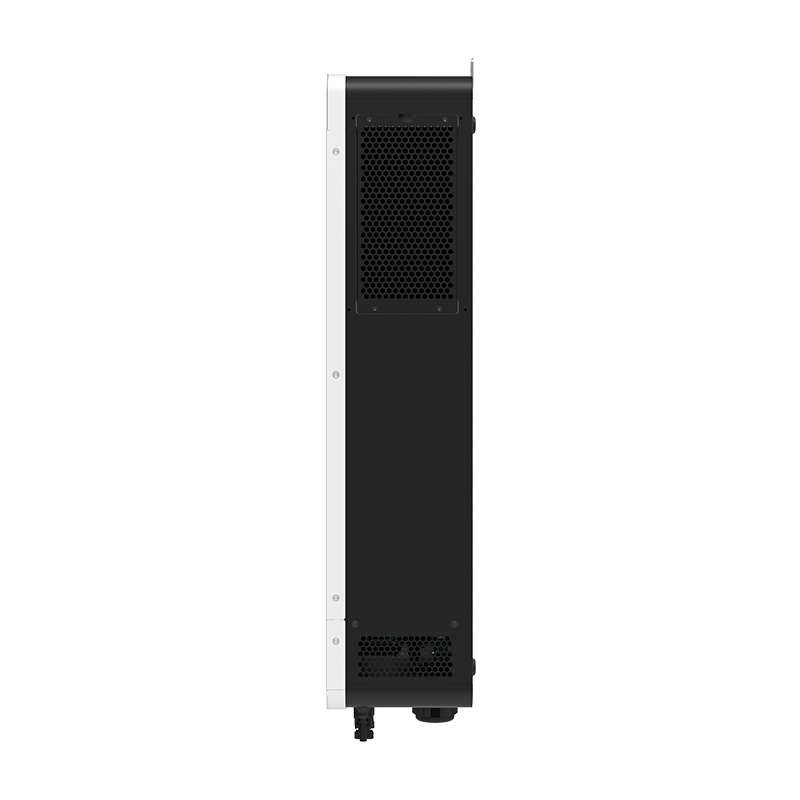

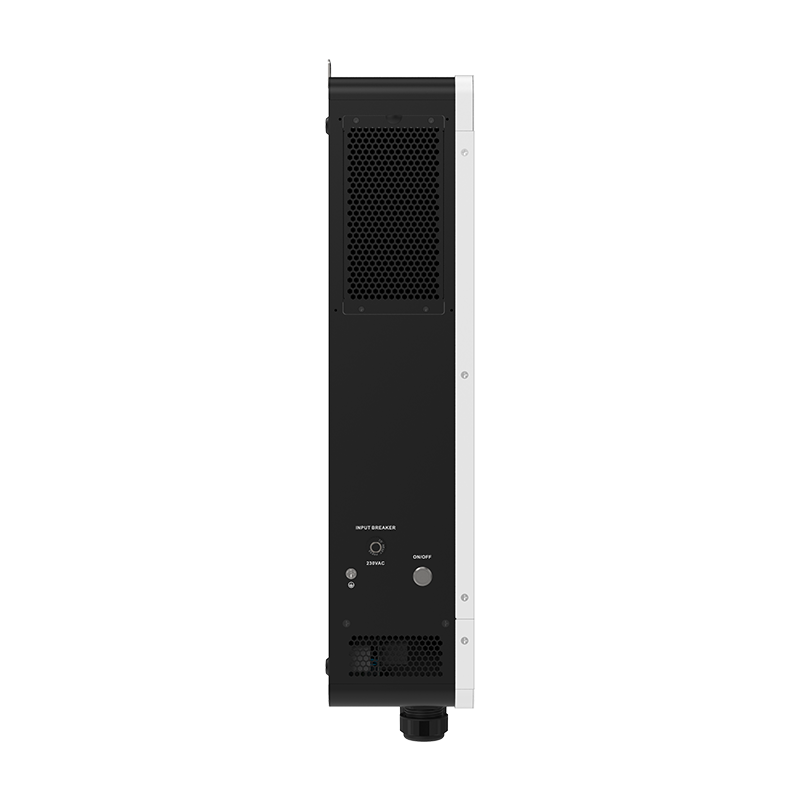

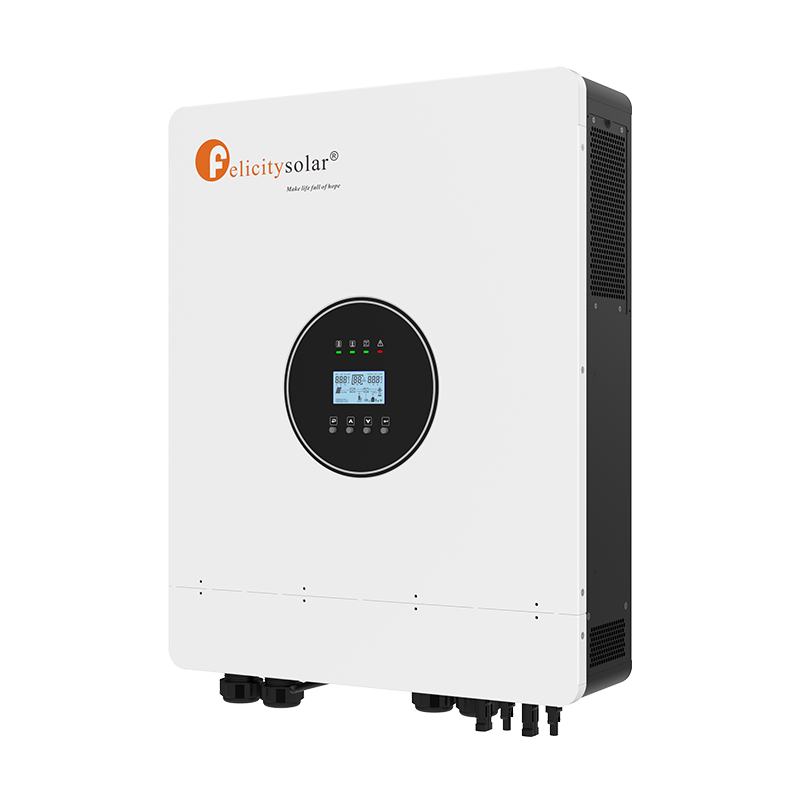

IVEM8~12kW-II

Off-grid Inverter

8~12kW | Single Phase | LV

What sets it apart.

Explore the key features, performance capabilities, and practical advantages that define this product.

Inverter, MPPT & Battery Charger in One

Pure sine wave output with built-in MPPT solar charging, supporting 2 strings of PV input.

150A / 240A Max Charging

PV and grid/GEN charging for fast battery recovery.

8000W / 12000W Pure Sine Wave

Clean 230Vac output; 10ms transfer time (UPS mode).

Parallel up to 6 Units

Single-phase or three-phase operation.

Mains or Generator Ready

Works with utility or generator power.

Full LCD Control & Wi-Fi Monitoring

Set input voltage range, battery charging current and AC/Solar charger priority directly from the LCD, and monitor the system anytime through the built-in Wi-Fi and mobile APP.

Smart Output Port

GEN port converts to a smart output.

Battery Flexibility

Runs without battery; lithium activation.

Full Protection

Overload, over-temp and short circuit.

Specifications

Detail Specifications of IVEM8~12kW-II

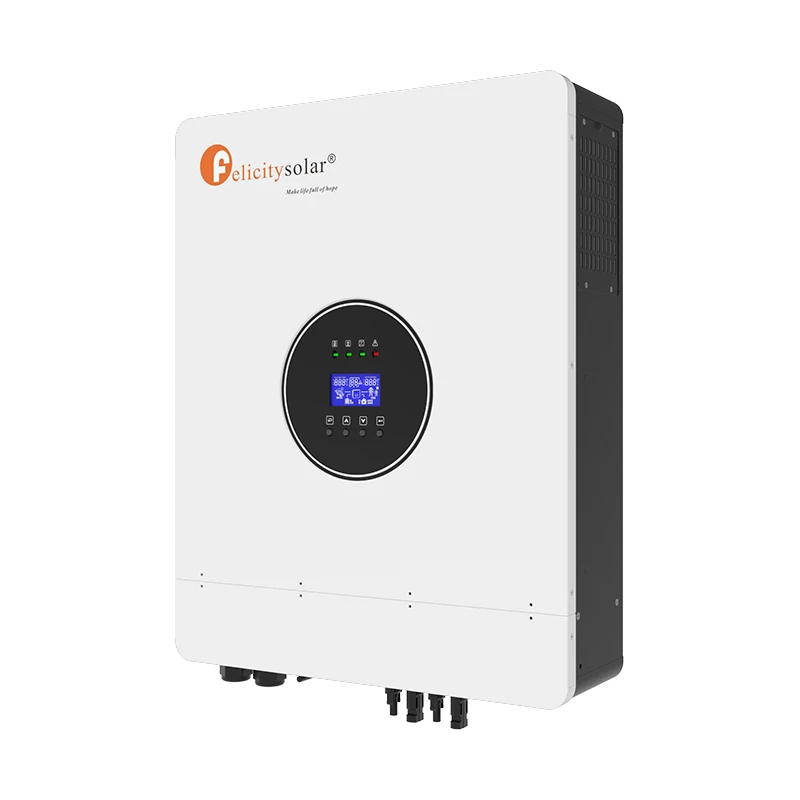

Model	IVEM8048-II	IVEM12048-II
Rated Output Power	8000VA / 8000W	12000VA / 12000W
Nominal DC Input Voltage	48V
Output Voltage Waveform	Pure sine wave (230Vac ± 5%)
Max. PV Input Power	10000W (5000W × 2 strings)	15000W (7500W × 2 strings)
Max. PV Open Circuit Voltage	500V
Max. Charging Current (PV + Grid/GEN)	150A	240A
Peak Efficiency	94.5%
Parallel Capability	Up to 6 units (max. 48KW/48KVA single phase)	Up to 6 units (max. 72KW/72KVA single phase)

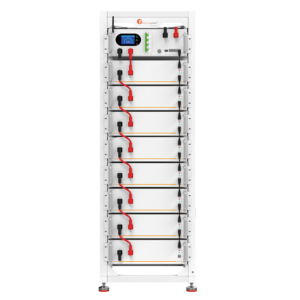

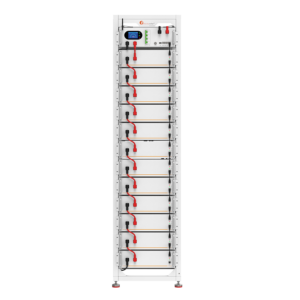

Superior System Expansion Capability

Flexible configuration to meet different capacity requirements of IVEM8~12kW-II

Overview:
IVEM8~12kW-II

This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
