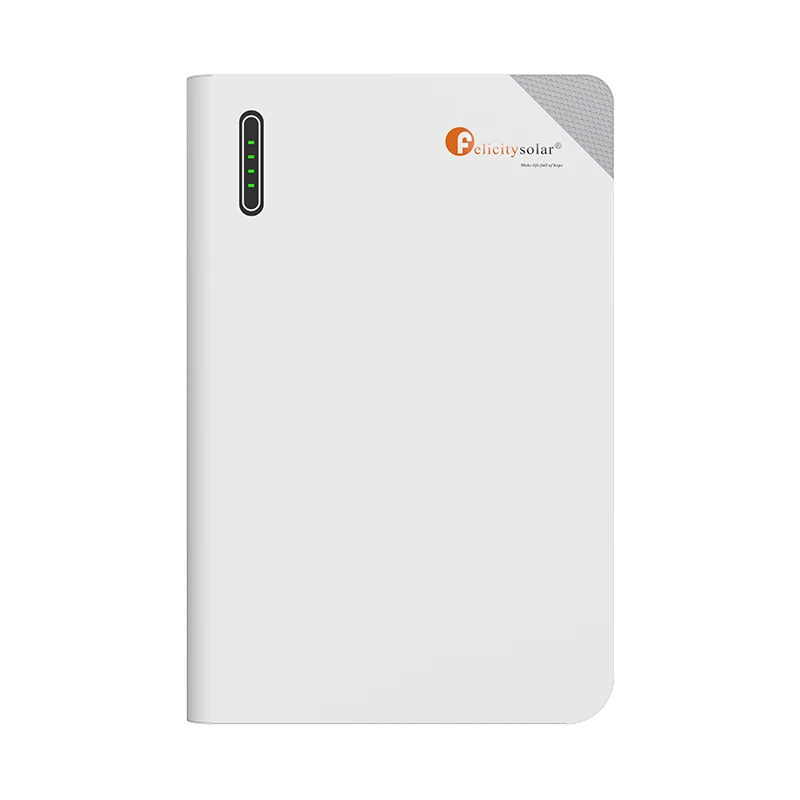

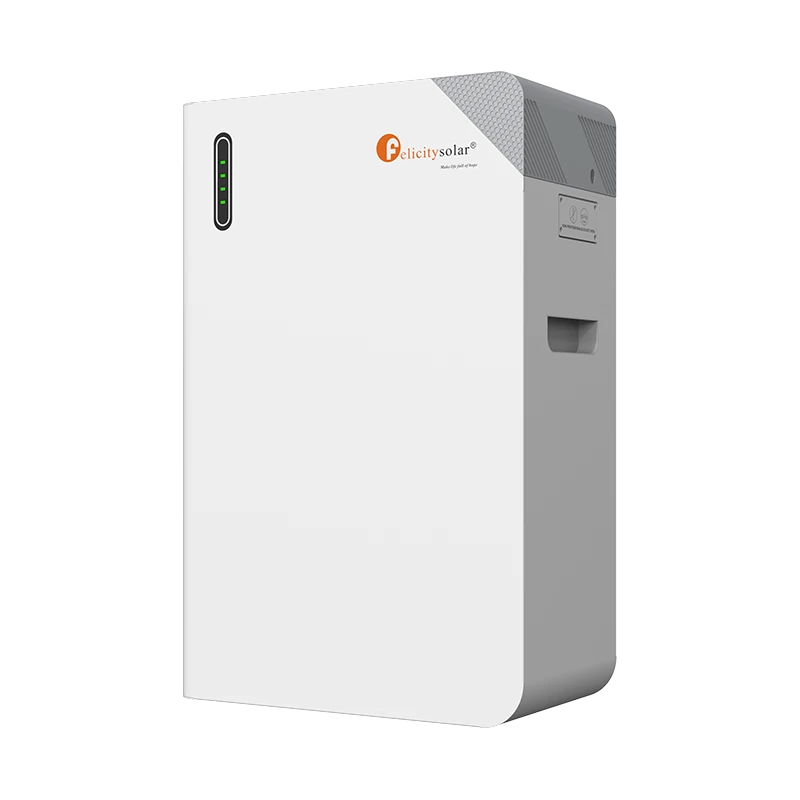

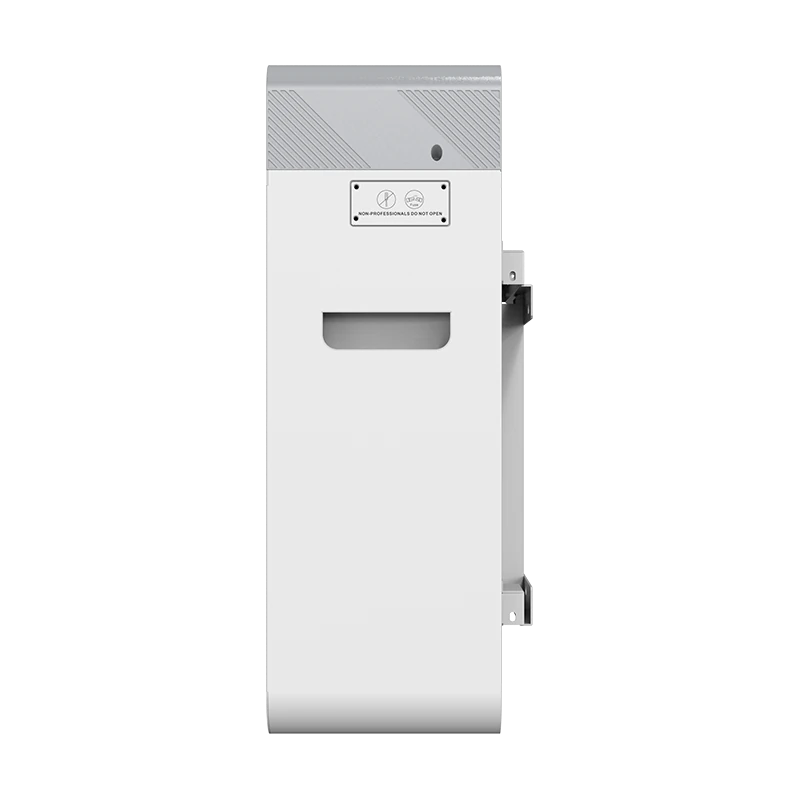

LiFePO4
FLB48230WG1-H
11.7kWh | 51.2V | LV
What Sets It Apart.
High-capacity, scalable, and smartly managed home energy storage.
11.7kWh Nominal Energy
Single-unit rated energy storage capacity.
150A Max Continuous Current
Charge and discharge up to 150A.
≥6000 Cycle Life
Long-lasting with 90% DOD at 70% EOL.
IP65 Protection Level
Suitable for outdoor installation.
Multiple Protection Systems
Built-in smart BMS, breaker, and fuse.
Connected Battery Monitoring and Communication
Built-in WiFi, Bluetooth, CAN, and RS485 support remote monitoring, battery data access, and inverter communication.
Flexible Installation Options
Wall-mounted or floor-mounted configurations.
Wide Inverter Compatibility
Compatible with leading inverter brands.
Aerosol Fire Extinguishing
Equipped with built-in fire suppression system.
Specifications
Detail Specifications of FLB48230WG1-H
| Model | FLB48230WG1-H |
|---|---|
| Battery Type | LiFePO4 |
| Nominal Energy | 11.7kWh |
| Nominal Capacity | 230Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage | 44.8~57.6V |
| Recommend Charge/Discharge Current | 100A |
| Max. Continuous Charge/Discharge Current | 150A |
| Depth of Discharge (DOD) | ≥95% |
Flexible Capacity and System Expansion
FLB48230WG1-H supports parallel connection of up to 32 units for high-capacity, multi-module energy storage systems.
11.7kWh
Rated energy of a single unit.
374.4kWh
Maximum system energy with up to 32 units in parallel.
Overview:
FLB48230WG1-H

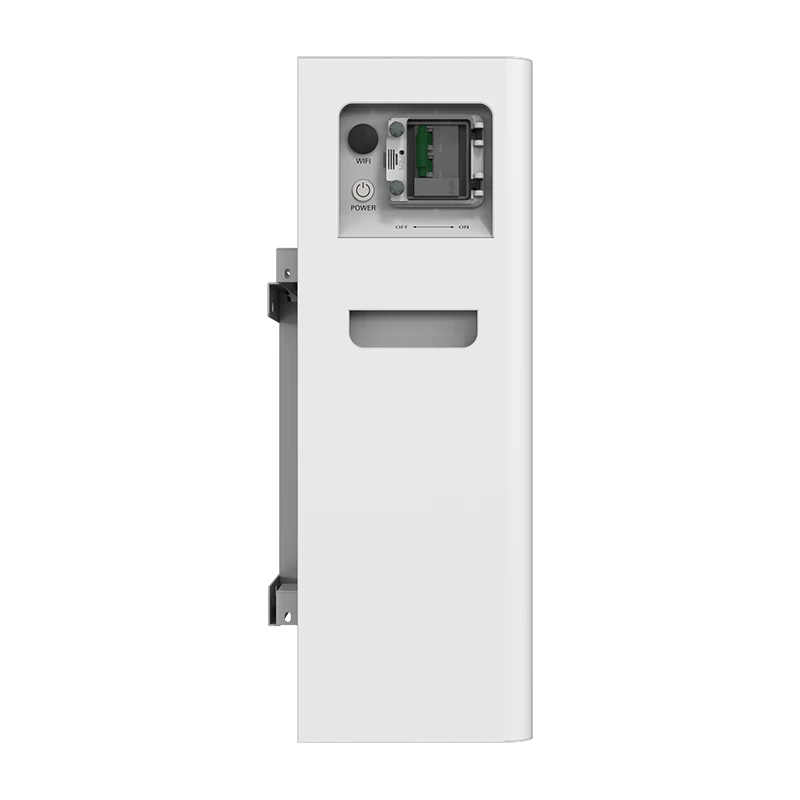

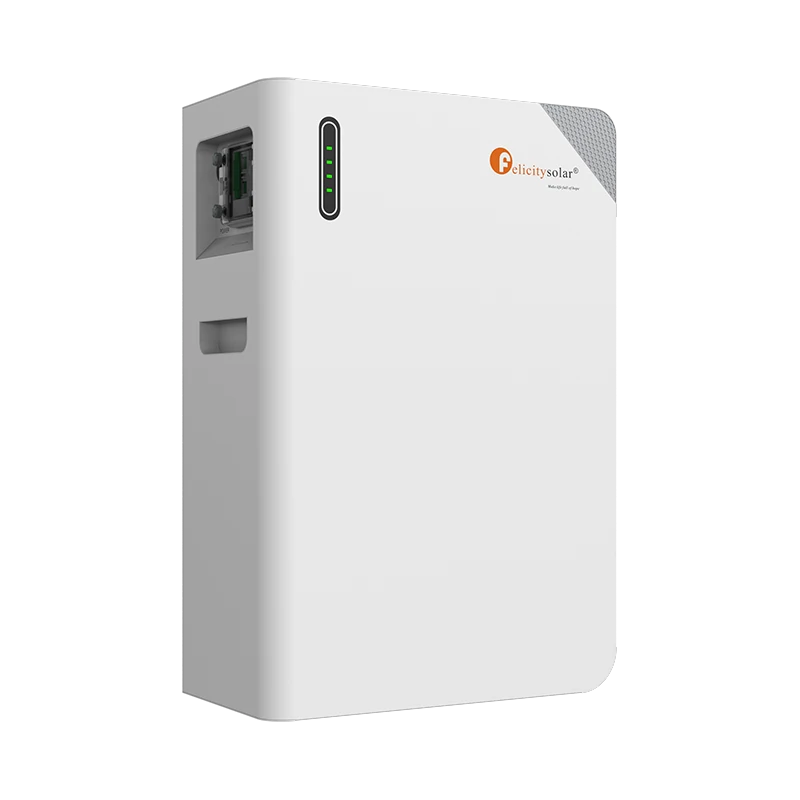

FLB48230WG1-H is a lithium iron phosphate (LiFePO4) battery storage solution designed for household use, developed based on customer needs and market demands. It provides high-quality, reliable power for various devices, featuring a long lifespan, suitability for high-temperature environments, and a compact design requiring minimal installation space. The product integrates an independently developed battery management system (BMS) and, when connected to a grid or photovoltaic system, stores energy by charging the battery. During a power outage from either source, it independently supplies electricity to household loads. Multiple units can be connected in parallel to form a high-capacity, multi-module system, meeting long-term energy storage requirements.
Overview
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

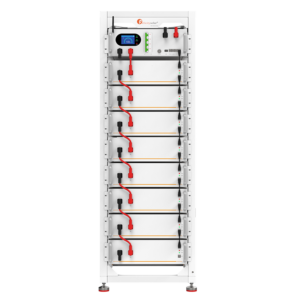

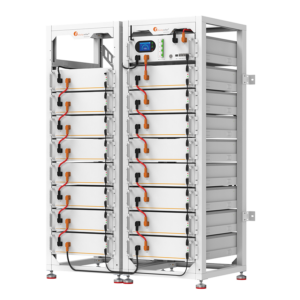

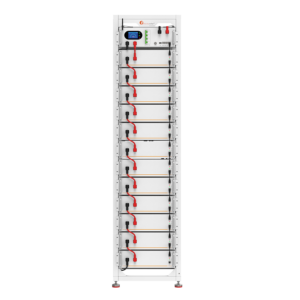

Multiple Bracket Options
Adapt to different installation scenarios with flexible configuration for FLB48230WG1-H
9-Layer Bracket
Medium capacity configuration with high cost performance
13-Layer Bracket
Medium capacity configuration with high cost performance
16-Layer Bracket
Medium capacity configuration with high cost performance
Reliable Charging in Extreme Cold
Built-in low-temperature heating function expands the charging temperature range down to -20°C, ensuring reliable operation in harsh environments.
With Heating Fuction
Application Scenarios
FLB48230WG1-H provides dependable energy storage for residential, villa, and commercial applications.
Factory
Store
Warehouse
Villa
School
Resident
Hospital
Download
Click to Download
[Certificate for Safe Transport of Goods by Road] 1125003791-7 FLB48230WG1-H.pdf
1.74 MB
[Certificate for Safe Transport of Goods by Sea] 1125003791-6 FLB48230WG1-H.pdf
1.72 MB
[Certification for Classify of Danger of Batteries] 1125003791-3 FLB48230WG1-H.pdf
1.32 MB
[Hazard Information Label] 1125003791-5 FLB48230WG1-H.pdf
0.43 MB
[MSDS] 1125003791-4 FLB48230WG1-H.pdf
1.10 MB
[UN38.3 TEST REPORT] 1125003791Y-1 FLB48230WG1-H.pdf
1.76 MB
[UN38.3 TEST Summary] 1125003791-2 FLB48230WG1-H.pdf
0.35 MB
