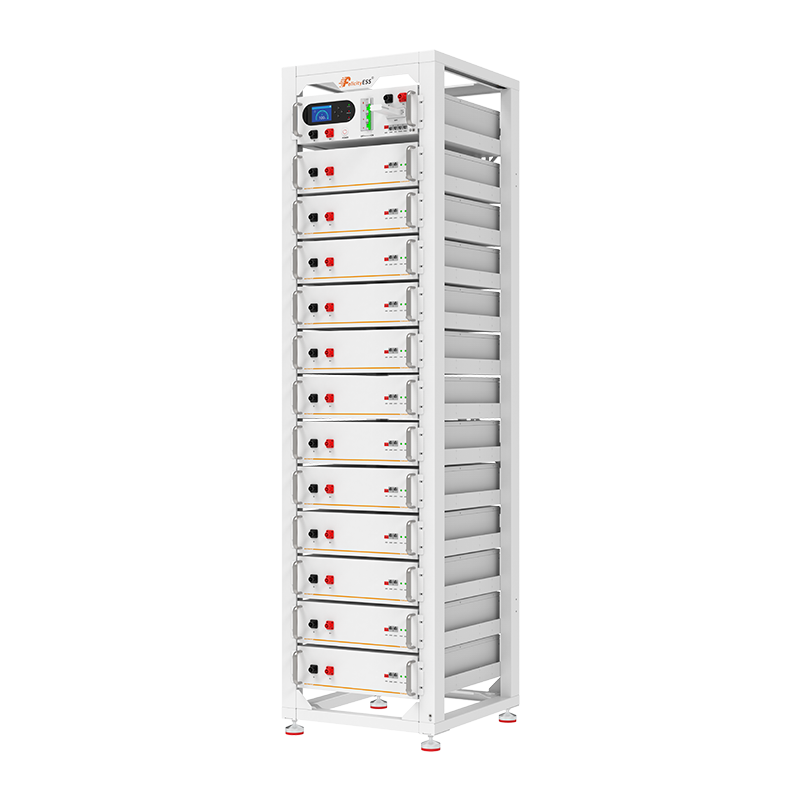

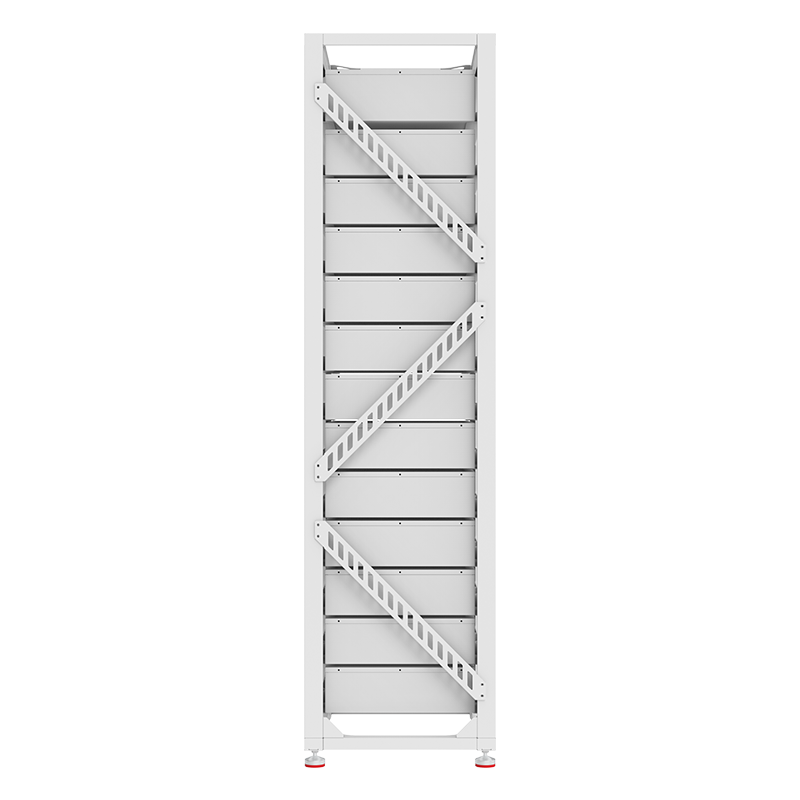

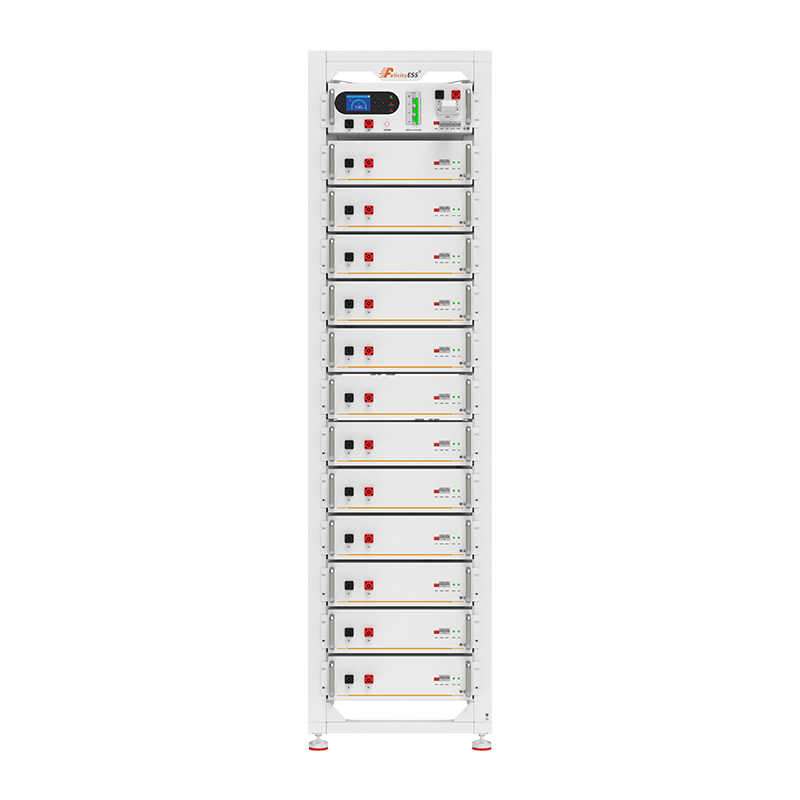

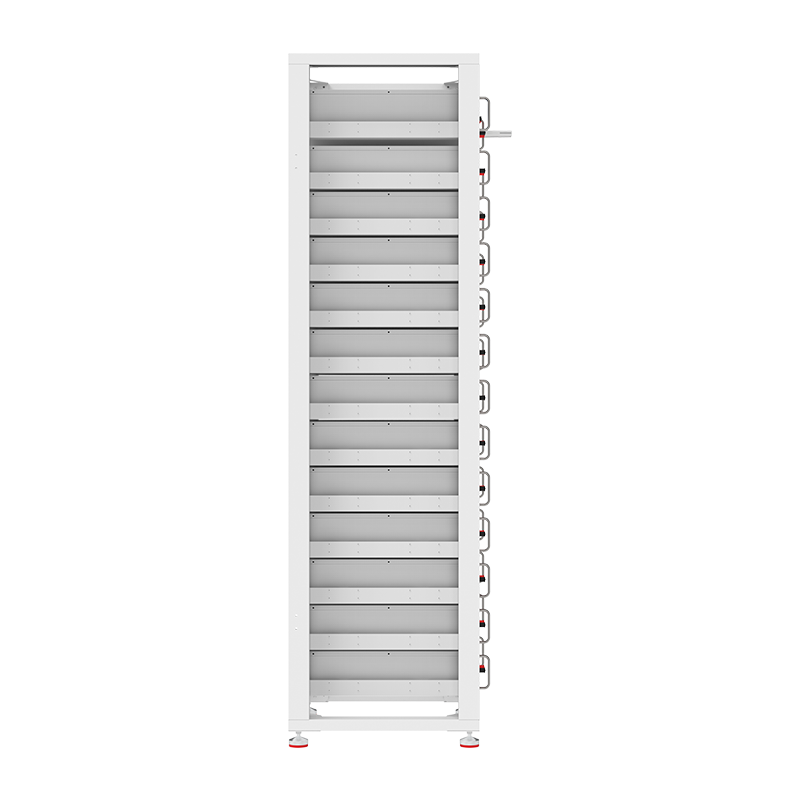

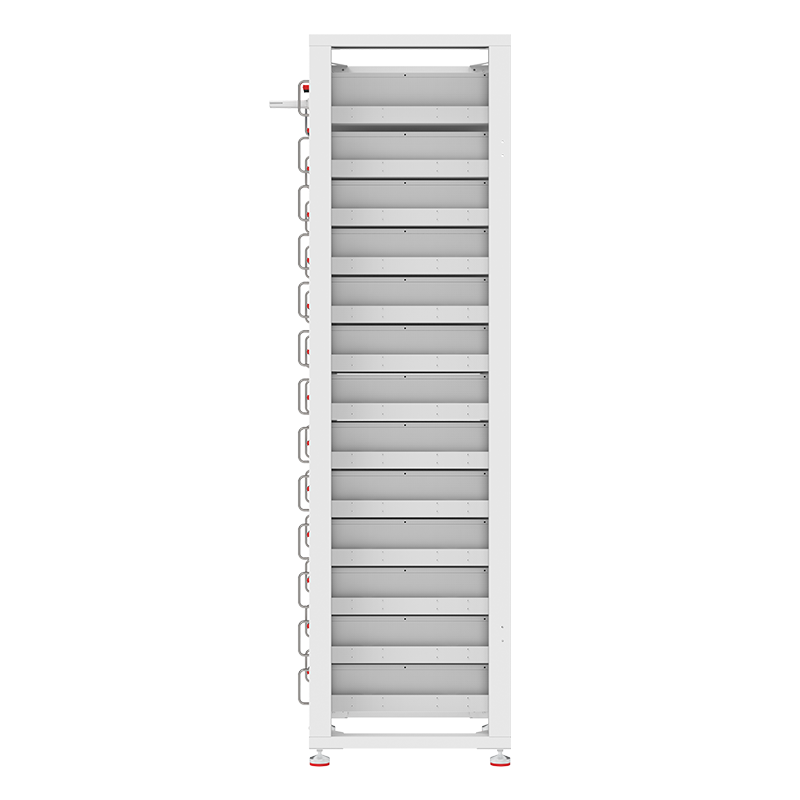

LUX Series
LUX-Y- 48100HG01
61.44kWh
614.4V
High Voltage
Rack-Mounting
10 Years Long Warranty
IP21 Protection Level
Product Introduction
1. LUX-Y-48100HMG01 is a battery module, it needs to be used with LUX-Y-48100HCG01 controller.
2. LUX-Y-48100HCG01 is the controller of the whole system, so each system must have four LUX-Y-48100HMG01.
3. Our system consists of at least 1 LUX-Y-48100HCG01+4 LUX-Y-48100HMG01 and up to 12 LUX-Y-48100HMG01.
2. LUX-Y-48100HCG01 is the controller of the whole system, so each system must have four LUX-Y-48100HMG01.
3. Our system consists of at least 1 LUX-Y-48100HCG01+4 LUX-Y-48100HMG01 and up to 12 LUX-Y-48100HMG01.
Product Advantages
● Configurable parameter and working mode via LCD touch screen.
● Multiple protections: over voltage, over current, external short circuit, reverse polarity/ground fault, over temp.
● Battery Protection: internal short circuit, over voltage, over current, over temp, under voltage.
● Higher safe performance and longer cycle life with LFP battery.
● Flexible Installation: Rack-Mounting.
● Compatible with leading inverter brands.
● Up to 10-year long warranty.
● Multiple protections: over voltage, over current, external short circuit, reverse polarity/ground fault, over temp.
● Battery Protection: internal short circuit, over voltage, over current, over temp, under voltage.
● Higher safe performance and longer cycle life with LFP battery.
● Flexible Installation: Rack-Mounting.
● Compatible with leading inverter brands.
● Up to 10-year long warranty.
Model
LUX-Y-48100HG01
Operating Voltage
576-691.2V(12 batteries)
System Energy
61.44kWh
Scalability
Up to 12 units in parallel(61.44kWh)
Depth of Discharge(DOD)
≥95%
Cycle Life
≥6,000 Cycles
Communication
RS485 / CAN
Protection Level
IP21
Download
- [UN38.3 TEST Summary] LUX-Y-48100HMG01 01112400001517-2
- [UN38.3 TEST REPORT] LUX-Y-48100HMG01 01112400001517-1
- [MSDS] LUX-Y-48100HMG01 1125000293-3
- [Hazard Information Label] LUX-Y-48100HMG01 1125000293-2
- [Certification for Classify of Danger of Batteries] LUX-Y-48100HMG01 1125000293-1
- [Certificate for Safe Transport of Goods by Sea] LUX-Y-48100HMG01 1125000293-4
