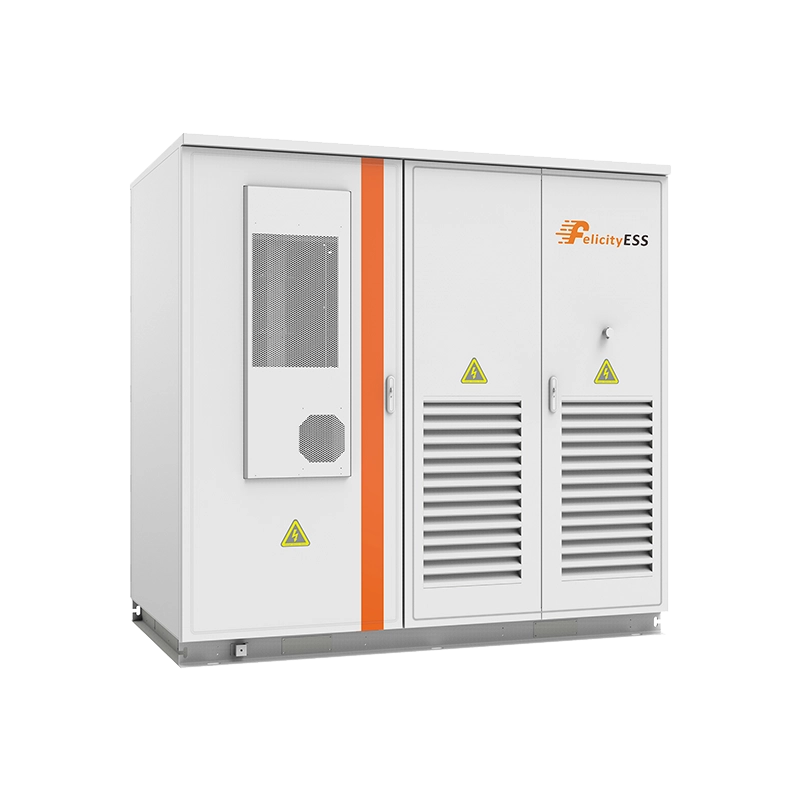

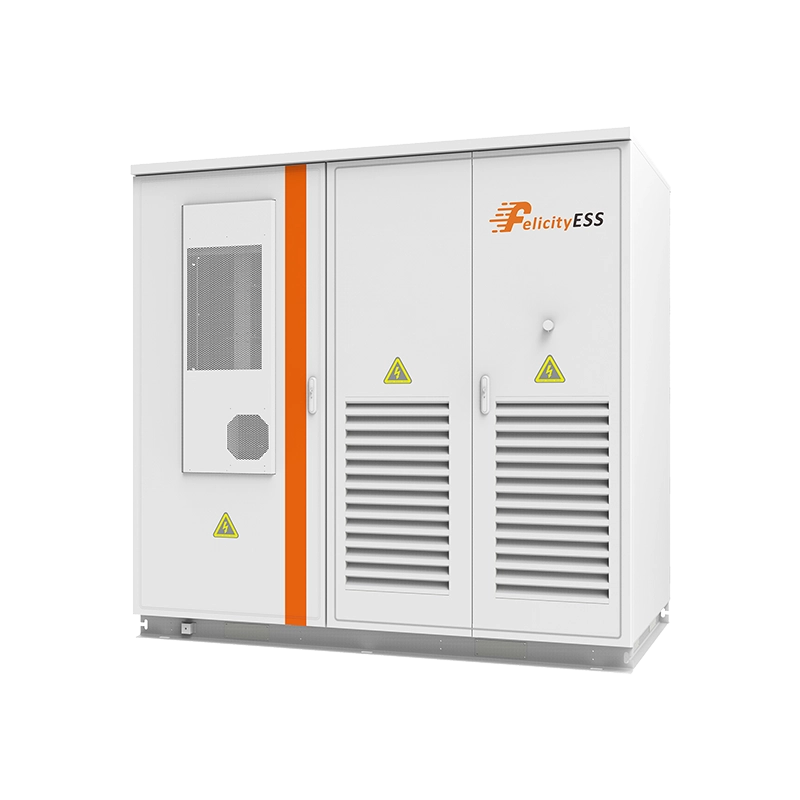

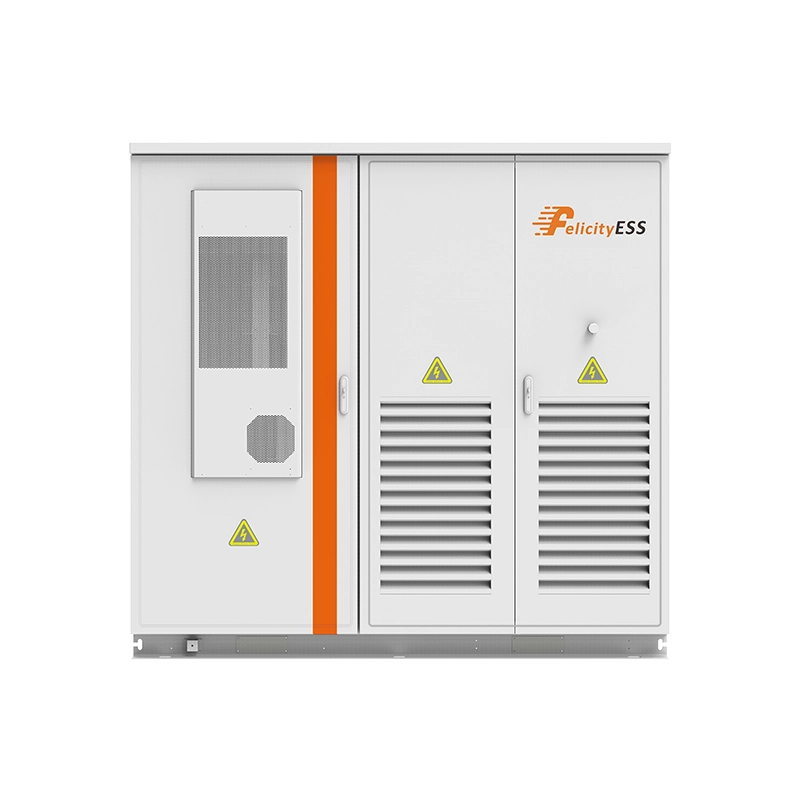

Air Cooling Series
FLS -MES215AF-S
100KW
140A
Forced air Cooling
Hybrid
Product Introduction

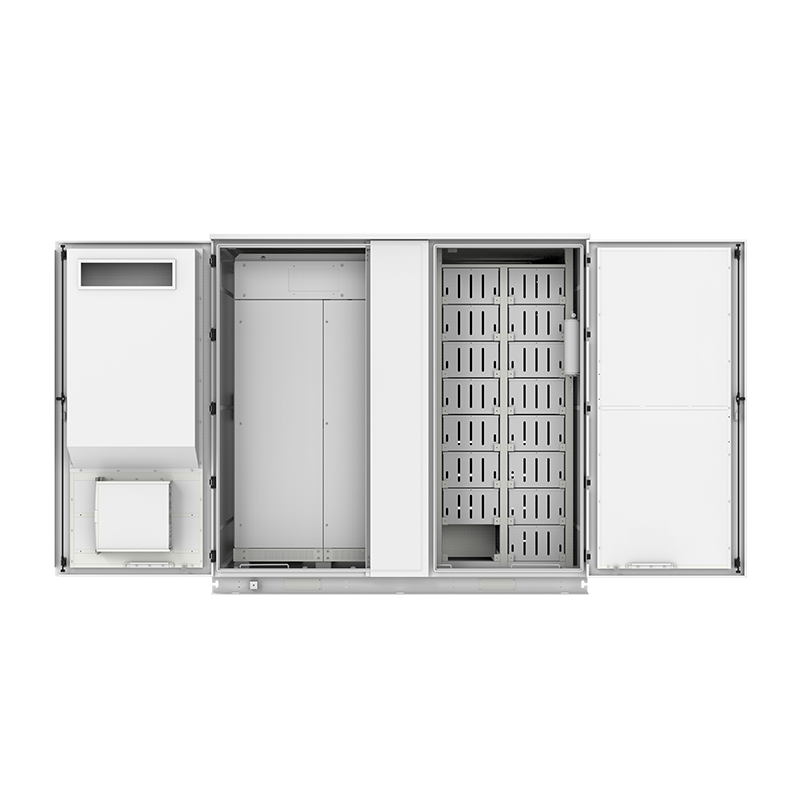

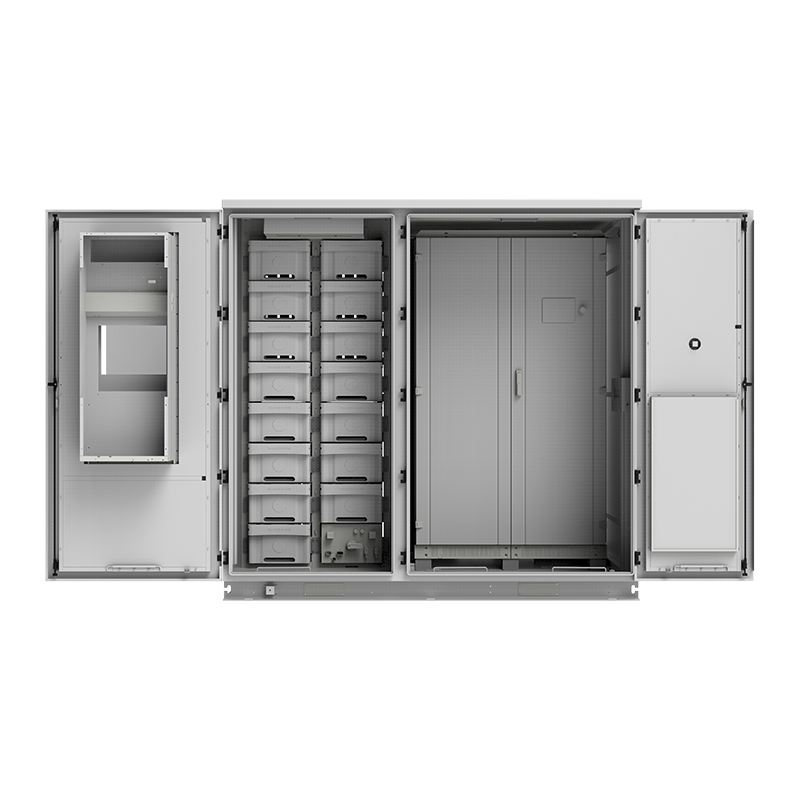

1. The outdoor cabinet energy storage system consists of battery clusters, power converters, EMS (Energy Management System), BMS (Battery Management System), active fire suppression devices, air conditioning units, and other components.
2. The power converter supplies AC power to loads through an isolation transformer, with STS (Static Transfer Switch) enabling grid-connected/off-grid switching.
3. This system can operate in different modes according to actual project requirements and operational strategies.
4. The MPPT (Maximum Power Point Tracking) photovoltaic controller directly charges batteries from PV power sources and provides greater flexibility in photovoltaic capacity utilization.
5. The outdoor cabinet energy storage system features an IP54 protection rating.
2. The power converter supplies AC power to loads through an isolation transformer, with STS (Static Transfer Switch) enabling grid-connected/off-grid switching.
3. This system can operate in different modes according to actual project requirements and operational strategies.
4. The MPPT (Maximum Power Point Tracking) photovoltaic controller directly charges batteries from PV power sources and provides greater flexibility in photovoltaic capacity utilization.
5. The outdoor cabinet energy storage system features an IP54 protection rating.
Product Advantages
● ≥6000 long cycle life.
● Easy expansion with module design.
● High Efficiency: battery 94%, system 87%.
● Multi Branches: Support load, battery and PV.
● High Safety: no parallel / circulating currents / three fire prevention.
● Easy maintenance with self diagnosis and fault location.
● User-friendly experience with ready to work, auto switch on grid / off grid mode.
● Certification Battery：UN38.3
● PCS：EN 50549-1、EN 50549-10、CE-EMC、CE-LVD
